Legacy – still supported

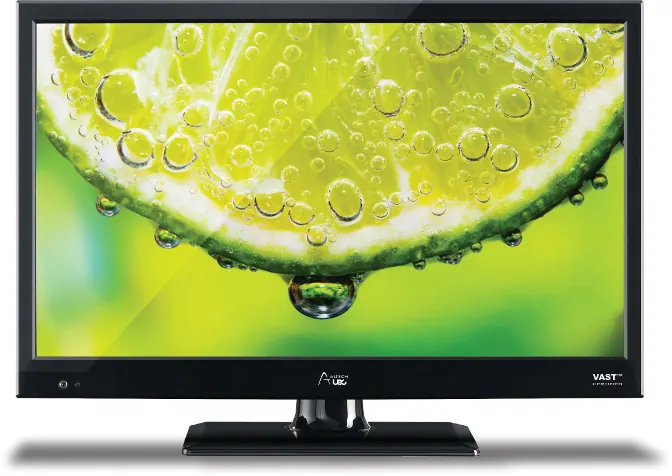

IDTV 22"
The VAST 22” integrated LED/LCD TV is designed specifically for the Australian VAST market.The TV includes a VAST satellite tuner and Digital TV tuner which makes it an ideal product for the traveler.
It is also equipped with a multitude of connections including 2 X HDMI, VGA, component video, composite video and coaxial audio out for digital audio.
Key Features
- 1080P (FHD)
- In-built VAST Decoder
- PVR Ready for VAST/Terrestrial TV
- Terrestrial HD Digital TV
- HDMI x2
- USB x2
- VGA Port
- 12V External Power Supply Pack
- Includes 12V Car Adaptor
- Single Remote Control
| PANEL SPECIFICATIONS | CONNECTORS |
|---|---|
| Resolution : 1920x1080 | DVB-T Antenna Input : 1 |
| Panel : AUO | USB : 1x for DVB-T |
| Display Colours : 16.7M | Composite Video : 1 |
| Contrast Ratio (Typical) : 1000:1 | VGA input : 1 |
| Brightness (Typical) : 250cd/m2 | HDMI : x2 |
| Response time (Typical) : 5ms | Coaxial out: 1 |
| ViewingAngle(Typical):H:178degrees,V:178degrees | USB2.0 : x2 |
| Aspect Ratio : 16:9 | VAST Antenna Input :1 |
| USB : 1x for VAST | |
| DIGITAL TV BOARD | VAST |
| Max Program No. : >800 | Built in Tuner : DVB-S2 |
| Video System : MPEG 2MP@HL,H.264 | Video System : MPEG -4(H.264),MPEG-2 M@HL |
| Sound System : MPEG-2 layer1/2, MPEG-2 layer 2, DD | Sound System : MPEG-2 layer 1&2 (musicam),MPEG 4 AAC/AAC+ |
| SOUND | PICTURE |
| Stereo Audio | Comb filter : 3D |
| Tone Control (Bass/Treble/Balance) | De-Interlace Scan/Progressive Scan : 3D |
| User Selectable Sound Control | Colour, Brightness, Contrast, Sharpness Control |
| Speaker Quantity and Placement : 2/Bottom | User Selectable Picture Control |
| Audio Output Power : 2 x 3W | OSD Language : English |
| POWER SUPPLY | USER CONVENIENCE |
| Power Supply : 4A/DC12V/AC100-240V 50/60Hz (External) | Full Function Remote Control |
| Power Consumption(W) : 48W | Adjustable Sleep Timer |
| Standby Power : <=0.5W | Adjustable Aspect Ratio |
| Adjustable Aspect Ratio : 4x3, 16:9, LetterBox | |
| Zoom modes | |
| Electronic Program Guide | |
| ACCESSORIES | DIMENSIONS AND WEIGHT |
| Instruction Book | Without Stand(mm) : 506(W) x 316(H) x 66(D) |
| Batteries for Remote Control | With Stand(mm) : 506(W) x 353(H) x 175(D) |
| Warranty Card | Vesa Mount(mm) : Scissor only |
| Remote Control | Weight With Stand : 3.4 kg |
| 12V Car Adaptor | Weight Without Stand : 3.2 kg |
